Name: Uponor Screed Multi Area Underfloor Heating Kit
Brand: UPONOR
SKU: WU10U10030
Price: 880.020 GBP
Availability: InStock

Description Technical Specifications

Description

Uponor Screed Multi Area UnderfloorHeating Kit

Our Uponor underfloor heating kits for screed floors have been designed to give you everything you need for your underfloor heating, from a name you can trust.

Ranging from 2- 10 zones and with pipe spacings of 200 centres, these kits are available with a choice of control options to suit your needs.

Simply choose your kit size and select the required thermostat and quantity. If you don’t need a thermostat, then no worries, we’ve made it easy to build your kit to your requirements.

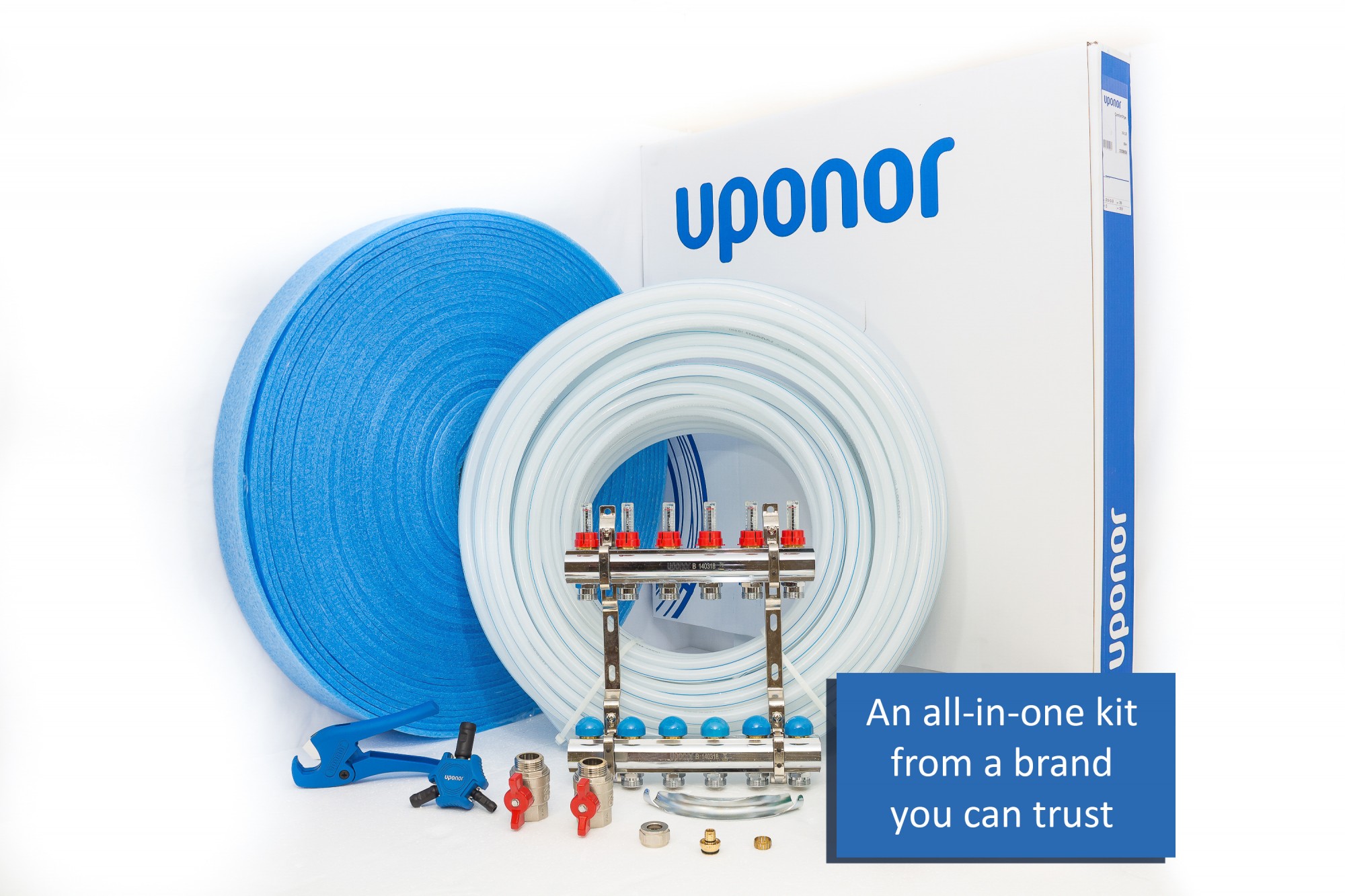

What's in your Uponor Screed Multi Area Underfloor Heating Kit

Manifolds and Pumps

EXPECTED END OF MAY 2022

Kit Size	Manifold	Control Pack & Pump	Ball Valves	Compression Adaptors	Pipe Length	Pipe Clips	Edging Strip	Actuators
30m²	2 Port	✓	✓	✓	2 x 75m	600	50m	2
40m²	2 Port	✓	✓	✓	2 x 100m	600	50m	2
50m²	3 Port	✓	✓	✓	2 x 75m - 1 x 100m	600	100m	3
60m²	3 Port	✓	✓	✓	3 x 100m	900	100m	3
80m²	4 Port	✓	✓	✓	2 x 200m	900	100m	4
100m²	5 Port	✓	✓	✓	1 x 500m	1200	100m	5
120m²	6 Port	✓	✓	✓	3 x 200m	1500	150m	6
140m²	7 Port	✓	✓	✓	1 x 100m - 1 x 500m	1500	150m	7
160m²	8 Port	✓	✓	✓	1 x 100m - 1 x 200m - 1 x 500m	1500	150m	8
180m²	9 Port	✓	✓	✓	2 x 200m - 1 x 500m	2100	200m	9
200m²	10 Port	✓	✓	✓	2 x 500m	2100	200m	10

Pipe cutters and bevelling tool are an optional extra.

Technical Specifications

Kit Size	Max Heat Output m2*	Max Heat Output kW*	Pipe Centres	Zones
30m²	100	2.1	200	2
40m²	100	2.8	200	2
50m²	100	3.5	200	3
60m²	100	4.2	200	3
80m²	100	5.6	200	4
100m²	100	7	200	5
120m²	100	8.4	200	6
140m²	100	9.8	200	7
160m²	100	11.2	200	8
180m²	100	12.6	200	9
200m²	100	14	200	10

*All heat output figures are an estimate. Final figures will vary.
