  • DEVIlink 140F1136 RS Room Sensor

DEVIlink 140F1136 RS Room Sensor

Image 1 of DEVIlink 140F1136 RS Room Sensor

Description Technical Specifications Recommended Products

Description

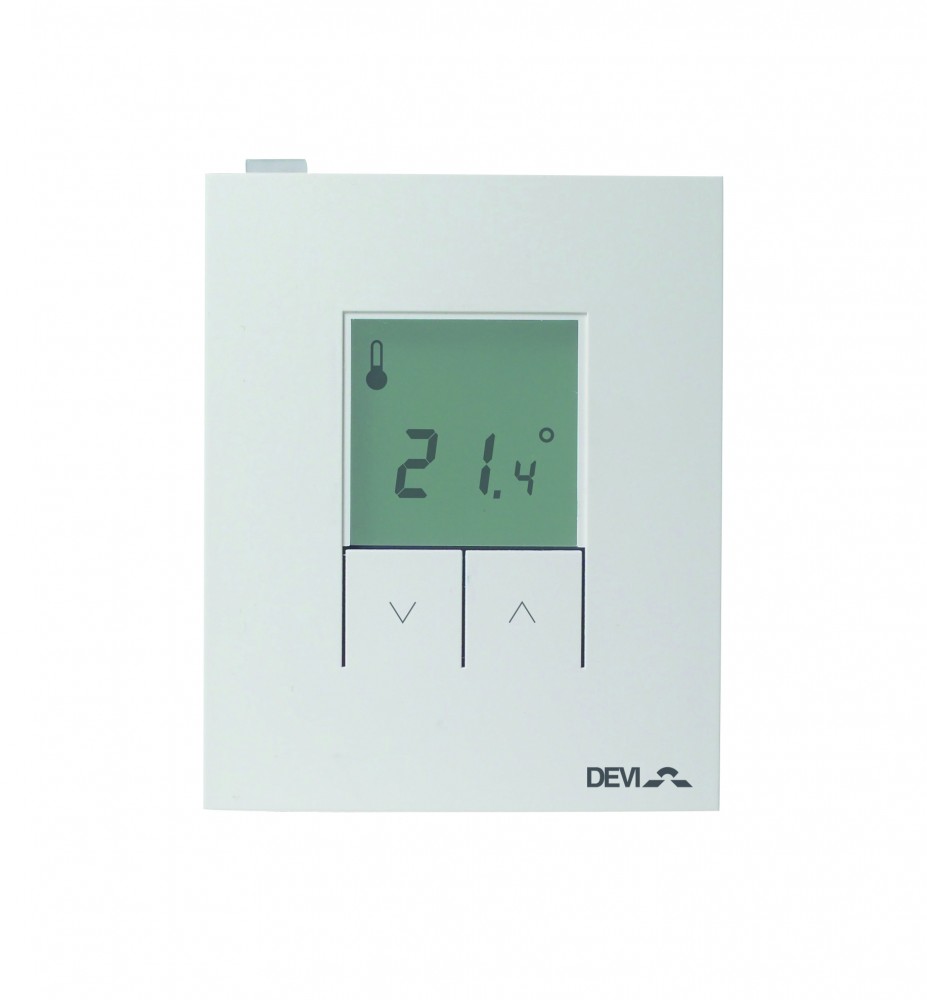

DEVIlink 140F1136 RS Room Sensor
The DEVIlink™ Room Sensor is optional and can be placed in each of the rooms you wish to control and adjust based on room temperature.
This sensor is battery-operated which gives your customer the freedom to place it wherever he or she likes it to be. To be used in conjunction with Devilink CC and DEVIlink FT Floor Thermostat.
View our range of Danfoss products at Underfloor Store.

Technical Specifications


Battery

Alkaline 2 × AA, 1,5 V

Battery Lifetime

Up to 4-5 years

Backlight

Green LED

Ambient temperature

0 to +40°C

Battery monitoring

The sensor has a built-in monitoring circuit, which will detect low or critical battery level

Transmission frequency

868,42 MHz

Transmission range in normal buildings

30m

Transmission power

Max. 1 mW

IP Class

21

Dimension (H/W/D)

81 mm × 66 mm x 21 mm
